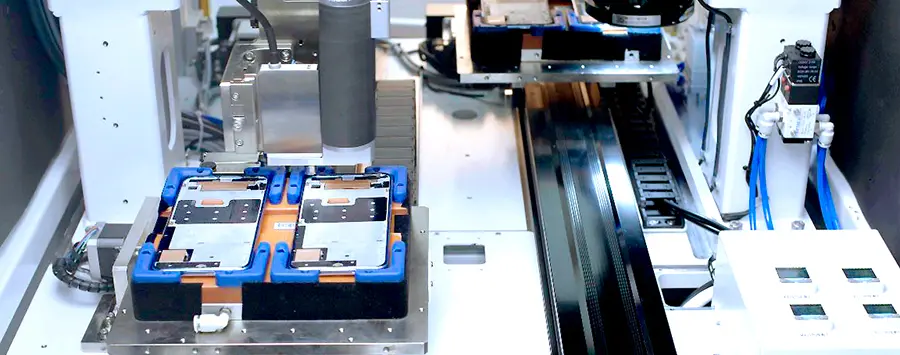

kinerja dhuwur lan biaya kurang; operasi podo Y-sumbu dual kanggo efficiency dhuwur; sistem posisi sesanti kuat sing nindakake dispensing adhedhasar dalan ngrancang miturut workstations dikenali.

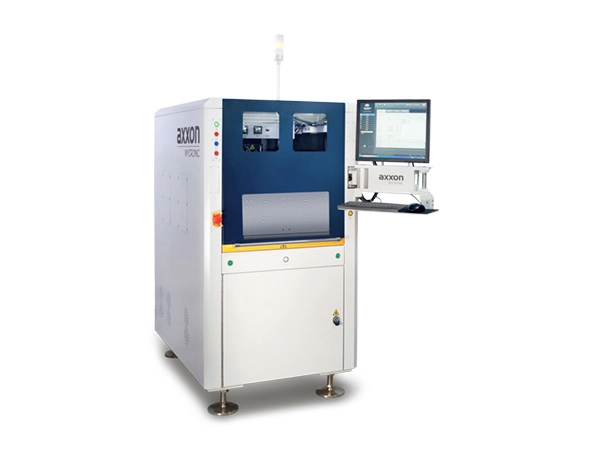

| Spesifikasi | Ai400T |
| Keperluan Daya | AC230V, 11A, 50Hz, 2.5KW |
| Persyaratan Tekanan Udara | 90 psi (6 bar) |
| ukuran | 800 x 1150 x 1500 mm (W x D x H) |
| Bobot | 650 kg |
| Area Dispensing | W x D = 490 x 210mm (tanpa konfigurasi khusus) |
| Maks. Ukuran substrat | W x D = 210 x 210 mm |
| Ketebalan substrat | <40 mm |
| Akurasi Positioning | ± 30μm @ 3σ (X, Y), ± 10μm @ 3σ (Z) |
| Repeatability | ± 15μm @ 3σ (X, Y), ± 5μm @ 3σ (Z) |
| Kacepetan maksimum | 600 mm/s (X, Y) |
| Akselerasi maksimum | 0,6g (X, Y) |
| Sistem Penggerak X/Y/Z-Axis | Motor servo AC kanthi sekrup bal presisi lan kontrol loop tertutup |
| Tipe Sumber Cahya | Sumber cahya gabungan |
