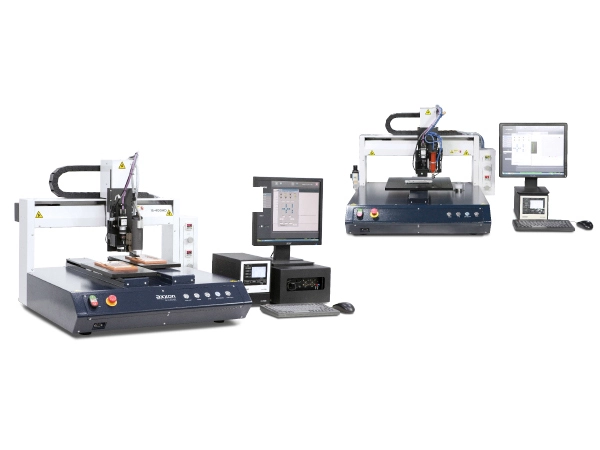

Robot desktop sing nduweni visi seri IS nduweni kemampuan canggih, kalebu kalibrasi otomatis, inspeksi visual, barcode lan pindai tandha fiducial, lan kompensasi dhuwur laser sumbu Z. Fitur kasebut nambah kinerja robot, supaya bisa nyukupi syarat dispensing ing macem-macem aplikasi.
• Dispensing modul sidik driji
• FPC dispensing lan reinforcement
• VCM lan CCM dispensing
• Underfill
• Encapsulation lan lapisan
• Ikatan pojok / enkapsulasi
• Solder tempel dispensing
• Dispensing earphone lan aplikasi dispensing liyane
| Parameter dhasar | IS-300H | IS-400H | IS-500H | IS-400HD | IS-500HD |
| Ukuran W×D×H (mm) | 606×741×638 | 706×841×638 | 806×941×638 | 706×841×638 | 806*941*638 |
| X/Y/Z 3-axis travel (mm) | 300*300*100 | 400*400*100 | 500*500*100 | - | - |
| X/Y1/Y2/Z 4-axis travel (mm) | - | - | - | 400*400*400*100 | 500*500*500*100 |
| Bobot piranti (kg) | 104 | 126 | 143 | 136 | 114 |
| Pengulangan X/Y/Z (mm) | ± 0,01 | ± 0,01 | |||
| Kacepetan maksimum X/Y/Z (mm/s) | 800/800/300 | 800/800/800/300 | |||
| X/Y/Z percepatan | 0,8g | 0,8g | |||
| X/Y/Z Struktur Mekanik | Jembatan H | Jembatan H | |||
| Metode Kontrol X/Y/Z | pengontrol gerak berbasis IPC | pengontrol gerak berbasis IPC | |||
| Metode Drive X/Y/Z | AC servo + modul presisi dhuwur | AC servo + modul presisi dhuwur | |||
| Beban sumbu Z (kg) | 5 | 5 | |||
| Beban Tabel sumbu Y (kg) | 10 | 10 | |||
| Metode Pemrograman | PC | PC | |||
| Kapasitas panyimpenan | 120 GB (SSD) | 120 GB (SSD) | |||
| Daya (W) | 650 | 850 | |||
| Vision Positioning System | 1.3-megapiksel kamera industri | 1.3-megapiksel kamera industri | |||
| Resolusi (mm/piksel) | 0,01 × 0,01 (bisa diatur) | 0,01 × 0,01 (bisa diatur) | |||
| Range pangenalan (mm) | 14 × 14 (ditemtokake dening lensa sing dipilih) | 14 × 14 (ditemtokake dening lensa sing dipilih) | |||
| Sumber cahya | Sumber cahya LED (lampu dering utawa lampu koaksial opsional) | Sumber cahya LED (lampu dering utawa lampu koaksial opsional) | |||
