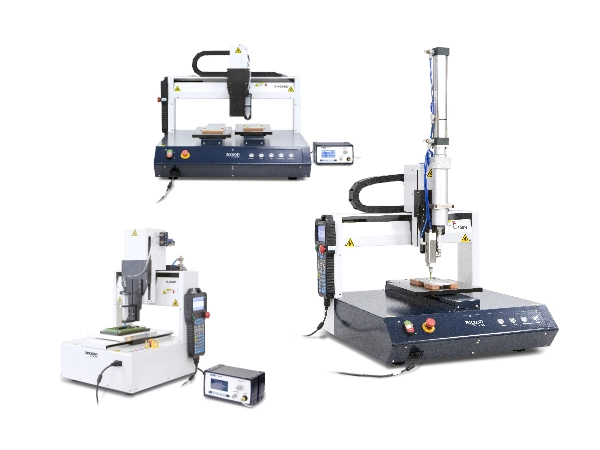

Robot desktop tingkat entri semi-otomatis S-Series nawakake solusi larang regane kanggo ngolah paket elektronik lan industri sing bentuke ora teratur, uga kanggo aplikasi testing, soldering, lan dispensing. Fitur kayata kalibrasi jarum otomatis lan kontrol katup cerdas mbantu nyilikake wektu persiyapan kanggo langkah pemrograman sing rumit lan nyuda downtime.

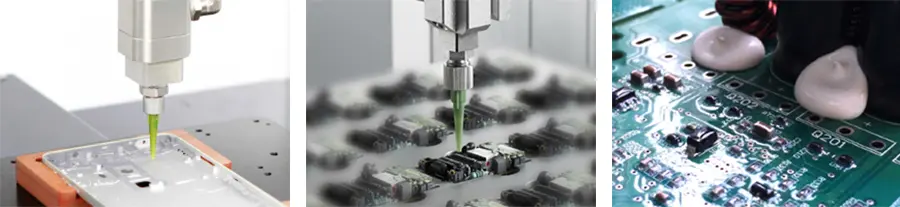

• Dispensing &
• Testing
• Jetting Industrial
• Potting
• Isi
• 3-Axis Motion
• Smart Valve Control
• Handheld Programmer
• Kalibrasi Jarum
• Safety Enclosure
• Safety Light Tirai
• Deteksi Low-Level
• Multi-sumbu Modul, Various Valves, Various Controllers
| Parameter dhasar | S-300H | S-400H | S-500H | S-400HD | S-500HD | S-200E |
| Ukuran W×D×H (mm) | 606×741×638 | 706*841*638 | 806*941*638 | 706*841*638 | 806*941*638 | 521*464*647 |
| X/Y/Z travel telung sumbu (mm) | 300*300*100 | 400*400*100 | 500×500×100 | - | - | 200*200*100 |
| X / Y1 / Y2 / Z papat sumbu Stroke (mm) |
- | - | - | 400*400*400*100 | 500*500*500*100 | - |
| Bobot piranti (KG) | 103 | 125 | 142 | 135 | 113 | 48 |
| Pengulangan X/Y/Z (mm) | ± 0,01 | ± 0,01 | ± 0,02 | |||
| X/Y/Z Maks. Kacepetan (mm/s) | 800/800/300 | 800/800/800/300 | 800/800/300 | |||
| X/Y/Z Akselerasi | 0,8g | 0,8g | 0,3g | |||
| X/Y/Z Struktur Mekanik | Jembatan H | Jembatan H | Jembatan H | |||
| Metode Kontrol X/Y/Z | Pengontrol gerak mandiri | Kontrol Gerakan mandiri | Kontrol Gerakan mandiri | |||
| Metode Drive X/Y/Z | AC Servo + High-Precision Module | AC Servo + High-Precision Module | AC Servo + Ball Screw Modul | |||
| Beban Sumbu Z (kg) | 5 | 5 | 5 | |||
| Beban Tabel Y-Axis (kg) | 10 | 10 | 10 | |||
| Metode Pemrograman | Handheld Programmer | Handheld Programmer | Handheld Programmer | |||
| Kapasitas panyimpenan | 128 | 128 | 128 | |||
| Daya (W) | 600 | 800 | 400 | |||
Robot desktop tingkat entri semi-otomatis S-Series nawakake solusi larang regane kanggo ngolah paket elektronik lan industri sing bentuke ora teratur, uga kanggo aplikasi testing, soldering, lan dispensing. Fitur kayata kalibrasi jarum otomatis lan kontrol katup cerdas mbantu nyilikake wektu persiyapan kanggo langkah pemrograman sing rumit lan nyuda downtime.
• Dispensing &
• Testing
• Jetting Industrial
• Potting
• Isi
• 3-Axis Motion
• Smart Valve Control
• Handheld Programmer
• Kalibrasi Jarum
• Safety Enclosure
• Safety Light Tirai
• Deteksi Low-Level
• Multi-sumbu Modul, Various Valves, Various Controllers
| Parameter dhasar | S-300H | S-400H | S-500H | S-400HD | S-500HD | S-200E |
| Ukuran W×D×H (mm) | 606×741×638 | 706*841*638 | 806*941*638 | 706*841*638 | 806*941*638 | 521*464*647 |
| X/Y/Z travel telung sumbu (mm) | 300*300*100 | 400*400*100 | 500×500×100 | - | - | 200*200*100 |
| X / Y1 / Y2 / Z papat sumbu Stroke (mm) |
- | - | - | 400*400*400*100 | 500*500*500*100 | - |
| Bobot piranti (KG) | 103 | 125 | 142 | 135 | 113 | 48 |
| Pengulangan X/Y/Z (mm) | ± 0,01 | ± 0,01 | ± 0,02 | |||
| X/Y/Z Maks. Kacepetan (mm/s) | 800/800/300 | 800/800/800/300 | 800/800/300 | |||
| X/Y/Z Akselerasi | 0,8g | 0,8g | 0,3g | |||
| X/Y/Z Struktur Mekanik | Jembatan H | Jembatan H | Jembatan H | |||
| Metode Kontrol X/Y/Z | Pengontrol gerak mandiri | Kontrol Gerakan mandiri | Kontrol Gerakan mandiri | |||
| Metode Drive X/Y/Z | AC Servo + High-Precision Module | AC Servo + High-Precision Module | AC Servo + Ball Screw Modul | |||
| Beban Sumbu Z (kg) | 5 | 5 | 5 | |||
| Beban Tabel Y-Axis (kg) | 10 | 10 | 10 | |||
| Metode Pemrograman | Handheld Programmer | Handheld Programmer | Handheld Programmer | |||
| Kapasitas panyimpenan | 128 | 128 | 128 | |||
| Daya (W) | 600 | 800 | 400 | |||
